12 WAY MARINE TYPE FUSE BOX WITH NEGATIVE BUS BAR & COVER
12 WAY MARINE TYPE FUSE BOX WITH NEGATIVE BUS BAR & COVER
Product Information

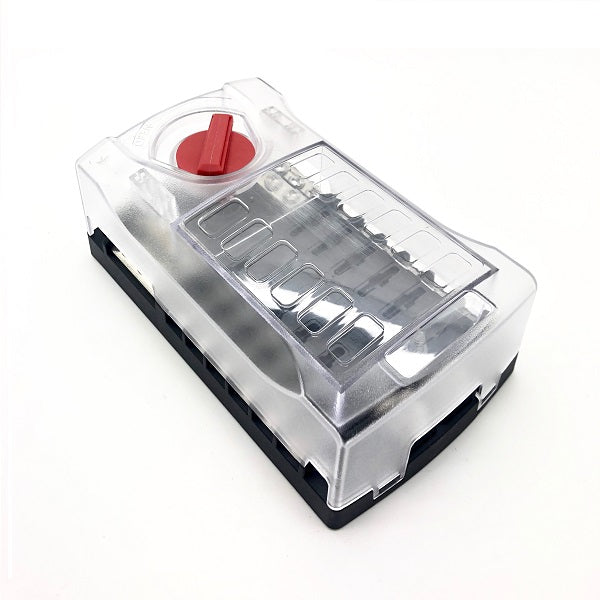

12 Way standard blade fuse box with incorporated cover, the new improved turn-lock system makes the cover even easier to use than previous incarnations of this box.

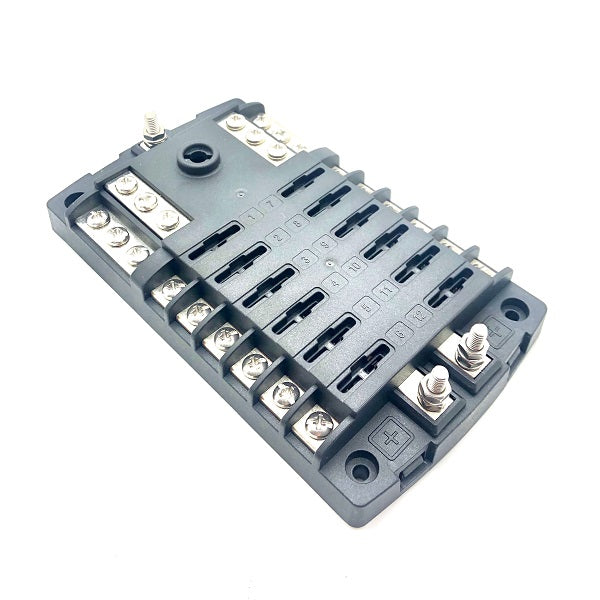

Consisting of two separate positive bus bars and one negative this fuse box gives the user the convenience of running all circuits back to one central point making any fault finding tasks much easier than before - this is particularly useful in marine applications where all earths are required to be common to the battery negative terminal.
The lid has spaces inside for spare terminals to be stowed with recesses in the lid for easy labelling of the circuits (A sticker sheet is supplied) - connections into the fuse box are made by M5 studs with the outgoing fused circuits being connected via M4 screw terminals
Secure mounting to any flat surface is by four recessed mounting holes located within the fuse box base
Specification
- Fuse Type: Standard ATO type
- Current rating: 30A per circuit - 100A per busbar
- Voltage: 32V DC
- Input bus stud size: M5 (5.3mm ring terminals required for connection)
- Circuit terminal screw size: M4 (4.3mm ring or fork terminals required for connection)
- Base: Black polycarbonate
- Cover: Clear polycarbonate
- Mounting hole dia: 4.5mm
- Overall dimensions (mm): 164 (L) x 94 (W) x 57 (H)
