HEAVY DUTY POWER DISTRIBUTION FUSE BOX FOR MEGA & MIDI FUSES

Product Information

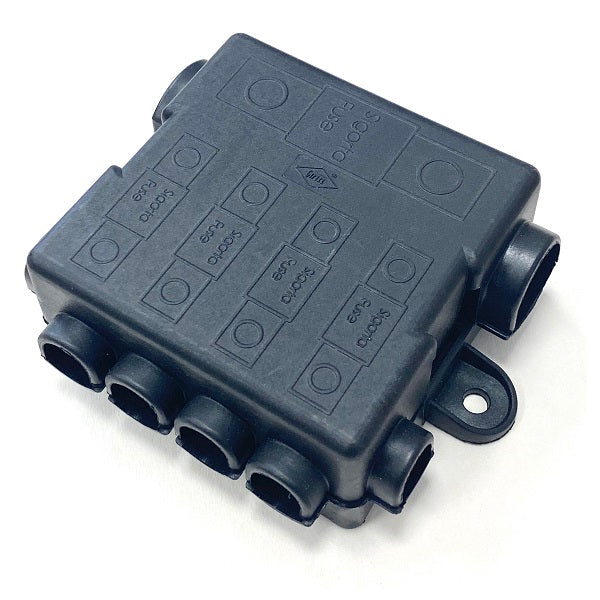

Heavy duty high current fuse box with incorporated cover, this fuse box can feed four circuits via a Midi fuse  and one common circuit through a Mega fuse.

Perfect for running multiple higher current circuits through one central distribution point.

Hard wearing plastic polycarbonate base can be screwed to any flat surface using the two integrated 5mm mounting holes

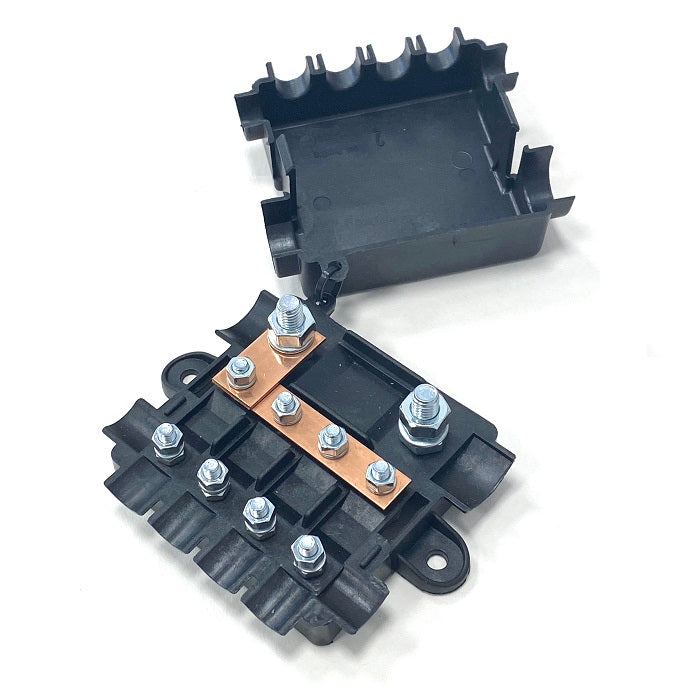

Fuses are bolted down using 8mm nuts and lock washers for the Midi fuses and 13mm nuts and lock washers for the Mega fuse

Specification

• Fuse Type: Midi & Mega Fuses
• Current rating: 200A per circuit (Midi) - 500A (Mega)
• Voltage: 32V DC
• Connection Stud sizes: M8 (Mega) M4 (Midi)
• Base: Black polycarbonate
• Cover: Black polycarbonate
• Mounting hole dia: 5mm
• Overall dimensions (mm): 117 (L) x 95 (W) x 38 (H)
