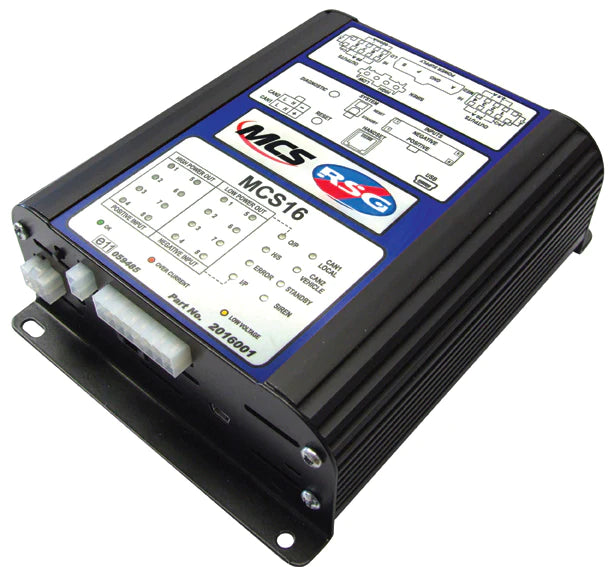

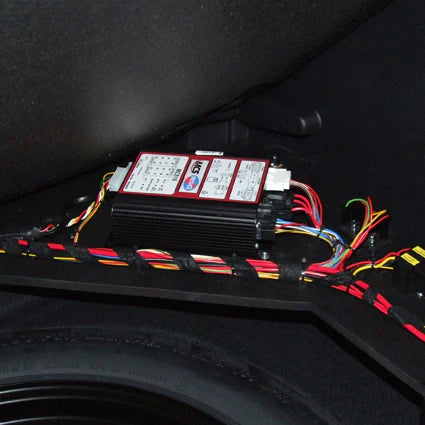

MCS-16 Universal Controller

Outputs
16 Outputs:
• 8 Hi Power Outputs
- 20 Amps per channel
- Current limiting
- Multi flash patterns
- Timer shutdown
- Voltage drop out
• 4 Low Power Outputs
- 600mA per channel
- Positive or Negative switching
- Provide monitoring signal inputs
- Negative polarity to switch low power relays
• 4 Medium Power Outputs
- 2.5 Amps per channel
- Positive & Negative polarity switching
- Provide monitoring signal inputs
- Drive relays
- Small motors
• 2 diode pairs built-in for headlight and/or tail light flashers
• Output to data logger
• Electronic Fuses
- Electronically adjustable
- Electronically tripped

 Inputs
• 16 Configurable Inputs
- 8 negative switching
- 8 positive switching
- Software configurable
- External reset
- Standby input
• 3 Standard Inputs
- Mic input
- Radio input
- Reset
- Standby

Multi-Way Switch Options
• Universal Multi-Way handset can be fully configured using the MCS software
• Single or up to 4 handsets

Serial Data Port
• USB x 1
• Link with third party MDT terminals

CAN or CAN Type Data Port
• Link to RSG complementary devices such as a lightbar
• Link to other industry new standard devices - CAN Bus
• Link with legacy equipment- PWM

User Interface
• 24 illuminated status indicators
• Indicates flash pattern
• Communication status
• Provides output status
• Green - OK
• Red - Over current
• Amber - Low voltage

Specification
• 12/24 volt operation
• 100 Amps total output
• Spec 5 approved
• 12v version ECE R10 (e) approved

• 3 year manufacturers warranty
